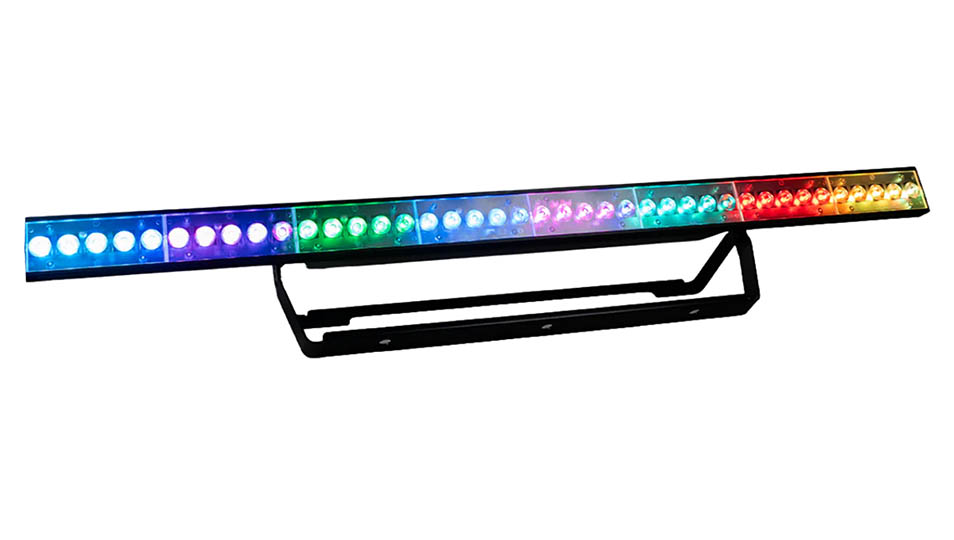

Event Lighting PIXBARs are designed for fixed installations and professional productions. The PIXBAR40FXT features full pixel control, a rugged aluminium housing, and fanless operation for silent, low-maintenance performance. Its tight beam optics and custom front lens design make it ideal for touring bands, stage visuals, and portable production environments where impact and reliability matter.
Applications
- Live bands and touring productions
- Stage backdrops and visual effects
- Wall wash and architectural lighting
- Portable event production rigs
- Pixel mapping and chase effects
- Club and venue installations
- FX lighting for performance design
Photometrics
Light Source: 40 x 1.5 W RGB LEDs
Beam Angle: 14°
Optics: Custom opaque front lens with precision pixel optics
Output: 5318lx @ 1m, 2450lx@2m
PWM: 24000 Hz
LED Life: 50,000 hours
Effects
Pixel Control: Full individual pixel mapping
Dimming: 5 16-bit digital dimming curves
Strobe: 1 – 25 Hz
Power
Input Voltages: 100~240 V AC, 50/60 Hz
Power Connection: TRUE1 in/out
Power Consumption: 65W
Control
Operation Modes: Static, Color Fade, Auto Program, Sound Active, Master / Slave & DMX Modes, RDM, WDMX
Control Protocol: DMX512
DMX Channels: 1/3/7/9/120/122ch
Control Interface: 5-pin XLR
Wireless DMX: Yes
Housing
Housing Materials: Aluminium, fanless construction (silent operation)
Cooling: Passive fanless cooling
Mounting: Integrated dual yoke stand for floor or truss use
Finish: Matte black aluminium
Dimensions:
Length: 1,050 mm
Width: 150 mm
Height: 150 mm
Weight: 4 kg
