NEW Stagetools Stage 1 Lighting Bar – Exclusively Available at Showtools!
Proudly designed, engineered and built in Australia to Australasian Standards. The Stage 1 achieves the strength and flexibility required to adapt into any space thanks to the impressive distributed weight loading and advanced configurable patch panel system. This durable lighting bar includes features such as interlocking modules without any compromise of the load bar rating, quick assembly and optional LED internal Lighting.

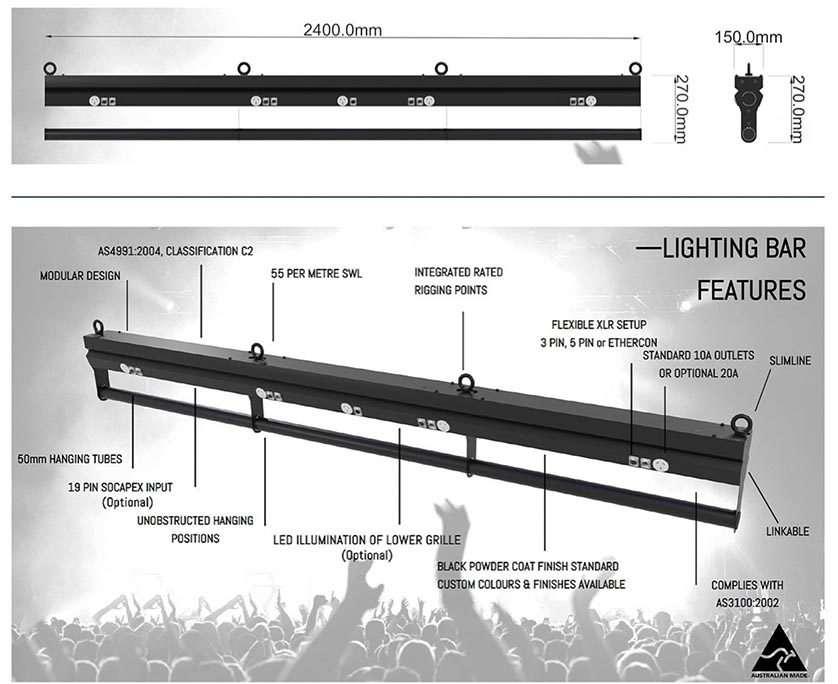

FEATURES
Material: Aluminium
Module Lengths: 2.4m, 3.6m, 4.8m
Barrel Size: 48.4mm OD

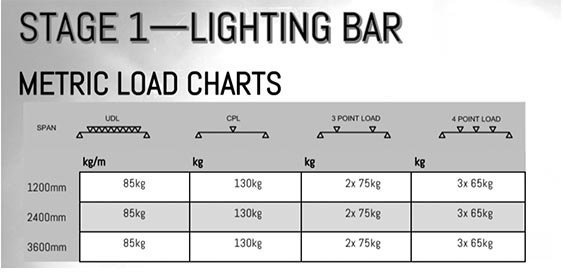

Distribution Loading: 85Kg/M
Point Loading: 130kg
Power Outlets: Standard 10A, or optional 20A
DMX input/output: 3/5 Pin XLR, Art-NET
SPECIFICATIONS
Depth: 150mm
Height: 270mm
Length + Weight:
2.4m @ kg
3.6m @ kg
4.8m @ kg
Colour: Black Low Sheen as standard
OPTIONS
Multicore Inputs: 19 Pin Socapex, Hardwired Optional
Power Outlets: Standard 10A, or optional 20A available.
DMX/Data input/output: 3/5 Pin XLR, Art-NET, Internal
LED: Optional Colour and Controllable LED
Colour: Black Low Sheen, other colours and finishes available on request.
– The Stagetools LX Bar is designed for use as a lifting beam to AS4991:2004, Classification C2
– The Stagetools LX Bar complies with electrical safety requirements AS3100:2002
– The Stagetools LX Bar is designed for use as a lifting beam to AS4991:2004, Classification 2
– The Stagetools LX Bar complies with electrical safety requirements S3100:2002
– A bolt set is supplied with each module that when fitted ensures the lighting bars align when mounted end to end.
– The Stage LX Bar can carry distributed loads of up to 55kg/m and point loads of up to 65kg, depending on installation rigging configurations.
– Please consult with licensed rigger or engineer prior to installing any suspended rigging system
-The Stage LX Bar can be customised with numerous options that the user can define at the time of ordering, allowing you to tailor the Stage 1 LX Bar to your installations requirements
