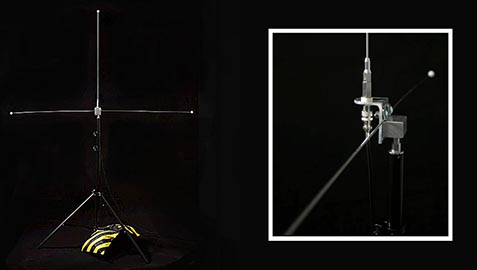

Designed for improved RF coverage when broadcasting over low-power FM radio, the RF Venue FM Antenna Kit is a turnkey package for churches and live venues transitioning to “drive-in” style services and performances. Low-power FM broadcasts typically suffer from poor range, signal dropouts, and uneven coverage. With the FM Antenna Kit from RF Venue, these systems can dramatically improve signal quality for attendees listening to a live service or music performance in their cars by extending the antenna to the desired coverage area.
Using an orthogonal ground plane with very low SWR over the FM band, the FM Antenna is rated for 10 mW to 100W of continuous operation and is easy to deploy. The low wind load antenna element and ground plane are perfectly suited for outdoor locations, and the kit includes a sandbag that clips to the base to keep the system in place.
The FM Antenna Kit includes everything needed to be successful with drive-in broadcasting including:
- High performance FM antenna
- Adjustable radials
- Telescoping antenna stand
- Sandbag with clip
- Antenna extension for tuning
- 100? of low-loss RG8X coaxial cable
Specifications include: an omnidirectional radiation pattern, vertical polarization, 50-ohm impedance, 88 MHz to 108 MHz operation, typical VSWR of 1.5:1 (tunable); and a typical -17 dB return loss.
www.RFvenue.com
Australian Distributor: Jands www.jands.com.au
