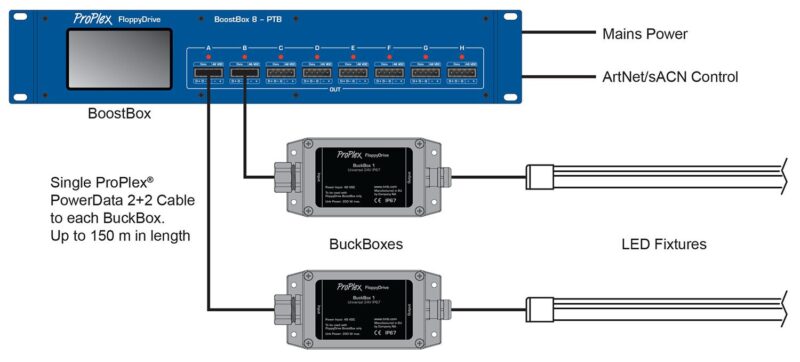

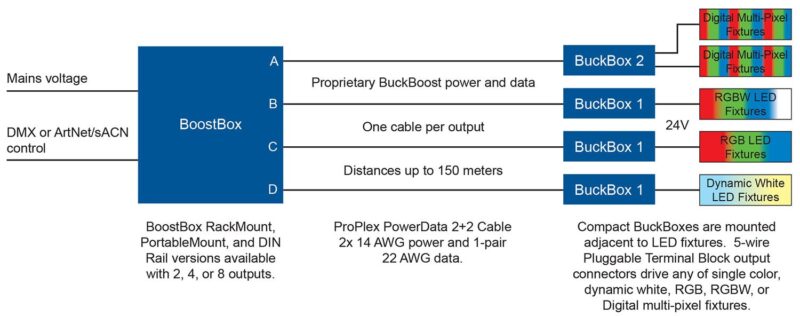

ProPlex’s BuckBoost™ Drive System is a unique, patent-pending technology that completely overcomes the cable length challenges of low voltage LED lighting, especially LED “neons” and tapes. This revolutionary new system allows centralized and remote (up to 150m) location of drives, mains power and PSU’s. The proprietary BuckBoost drive signal is carried over a small cable, sized equivalent to a mic cable, from a remote BoostBox™ to a small inconspicuous BuckBox™ located adjacent to the fixture.
The BuckBoost System also incorporates ProPlex proprietary SmartFade™ dimming. This industry-leading high resolution dimming technology provides advanced features including:
- Gamma correction
- Smooth, linear fades, 100% to zero
- Instant response times
- Variable PWM frequency – 300 to 40,000 Hz.
- Compact, inconspicuous BuckBoxes – IP67 architectural, and IP65 portable versions
- BoostBox units include DMX and dual Ethernet control connections – versatile connectivity for any project scale.
- Up to 200 Watts of power per BoostBox output
- Single ProPlex® PowerData 2+2 Cable to each BuckBox. Up to 150 m in length!
- Variable PWM frequency – 300 to 40,000 Hz. Lower frequencies will drive LEDs with built-in active drivers while higher frequencies allow flicker-free high-speed filming.
- Self-resetting solid-state overload protection – protection for short-circuit or overload that will prevent driver damage and reduce fire hazard – no need to replace fuses!
