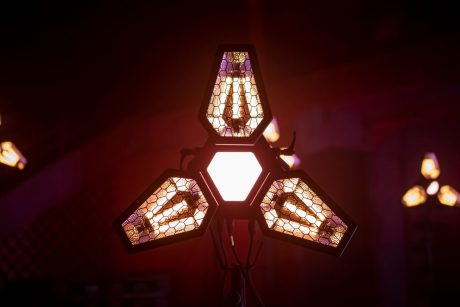

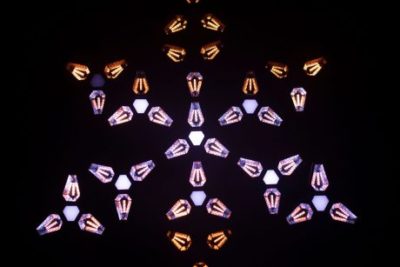

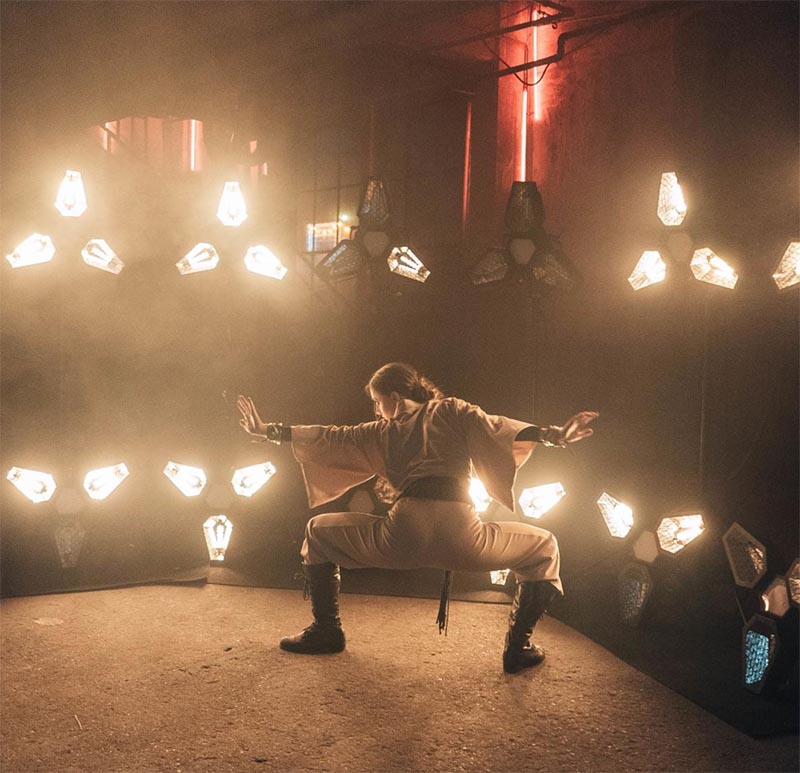

Mantis – unique, fully LED-based decorative stage lighting. Species belonging to the Portman family. It is characterized by a high spreading rate, especially in the tour, festival, tv show environment. Easy to tame by LDs. You can use them as independent units but also in larger clusters.
Light sources
There are three main warm light sources that emulate halogen behaviour. These are accompanied by an RGBW glow with a nice, smooth colour mixing. In the centre, there is one RGBW light source with the frosted diffuser and allows to add on it a gobo.
3 x 60 W LEDs (halogen emulation)
3 x 12 W RGBW LEDs (colour glow)
1 x 18 W RBGW LEDs (central gobo light)
Dimensions and weight
Mantis is a lightweight and handy fixture. The overall size is around 65cm and the weight is 8 kg. It can be easily installed on any tripod or an on a hook.
65x65x17cm
8kg
Rigging >180° yoke
13 mm (1/2 in) hole for spigot or clamp
Control
All electronics are always on board. To control it you can use 5-pin XLR or WDMX* (as an optional module) or set a macro in the standalone mode.
6 DMX modes (21-43 DMX channels)
RDM
macros
W-DMX*
Power
The whole fixture provides a lot of power in LEDs. It can be a nice smooth dimming fixture as well as a strong blinder. Can be operated on any kind of power source.
100 – 240V 50Hz/60Hz
