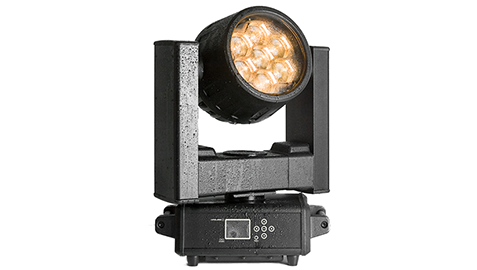

The M7IP40RGBW is Event Lighting’s Outdoor IP55 Pixel controllable moving wash. It has 7x 40w RGBW (4-in1) LEDS, 5-45 degree beam angle and with 5 pin XLR interface.
Power
- Input Voltage: 100~240V AC, 50/60 Hz
- Power Consumption: 249W
- Connection: Seetronic® Outdoor Powerkon Input and Output Connection
Photometric
- Light Source: 7 pcs Osram® 40W RGBW 4-in-1 LED
- Beam Angle: 5 – 45°
- Output: 37,000lux @ 3M RGBW at 5°, 1,950lux @ 3M RGBW at 45°
- PWM: 1200Hz
- LED Lifespan: 60,000 hours
Effects
- Dimming: 0 ~ 100%
- Pixel Control: Yes
- Strobe: 0.5 ~26 Hz
- Zoom: 5 – 45°
Movement 16 – bit
- Pan: 630° (1.56 sec) / 540° (1.3 sec)
- Tilt: 265° (0.85 sec)
Control
- Operational Modes: DMX, Auto Program, Sound Active, Master / Slave
- Preset colour temperature at 2000k-2700K, 3200K, 4200K, 5600K and 8000K
- RDM: Yes
- Protocol: DMX512 (W-DMX™ Optional)
- DMX Channels: 22 /51 /19 /21
- Interface: Seetronic® Outdoor 5-Pin XLR / Artnet Interfaces
- Display: 2.4? Colour LCD Control Panel with Back-up Power.
- Software Upgrade via DMX: Yes
Housing
- Materials: Die-cast Aluminium & Steel
- Finishing: Matte Black
- Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan
- IP rating: IP55
- Dimension: 343 x 256 x 560 mm
- Net Weight: 22.6 kg
- Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks
