The letters “K” , “N” and “V” stands for KNife and Viking and suggest a really strong and powerful lighting tool with maximum impact.
Additionally the “V” is the roman numeral 5 which symbolized the 5×5 pixel design.

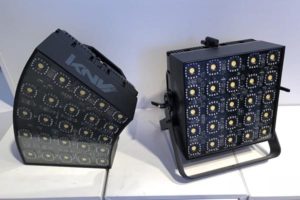

The GLP KNV Cube and KNV Arc is a modular designed LED system which can be used as a single unit or easily combined in an interlocking system.
Making it easy for designers to create their own fixture designs such as a double unit or a quad cluster, all the way up to huge LED walls. In combination with the GLP KNV Arc, it is possible to create a huge variety of shapes such as a ring or wave like design.

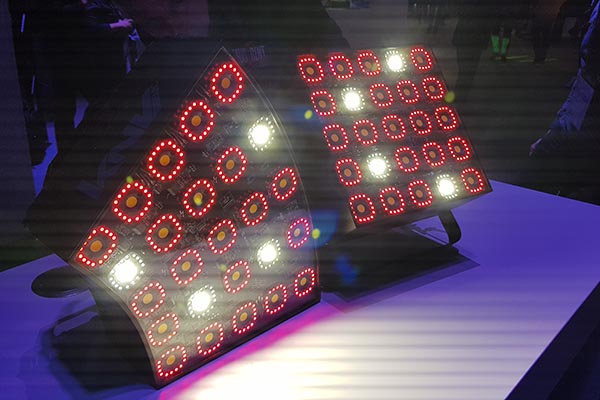

The GLP KNV System houses 25 high power white LEDs for maximum brightness and impact. Each power LED is surrounded by 16 RGB LEDs for creative effects and powerful backlight illumination.
All together one module will bring it up to 50.000 lm !
But that’s not all. The modules are fully IP54 rated, so it can be easily used on festival Front trussing or outdoor applications.
An integrated powerful FX engine offers easy handling of the pixels and creates stunning effects at a minimum of programming time.
Modular IP54 rated, weatherproof design in two versions: KNV Cube and KNV Arc
Features:
- KNV Cube: length 250 mm, width 250 mm , depth 250* mm
- with 9.7 kg (Arc) / 9.3 kg (Cube)
- Easy interlocking system to combine multiple modules to create
- individual multi fixture or unlimited scaling. Up to 4 Units
- connectable without separate supporting structure
- Easy daisy chain installation via powerCON TRUE1 in/out and
- RJ45 in/out (DMX, Artnet, sACN)
- High contrast, battery powered display for fast checking
- and easy setup
- Two temperature-controlled head fans for optimizes cooling
- power consumption: 750W @ full power
- Rough bracket for hanging, surface mount and floor stand
Light source and Output
- 5×5 Power RGBW Pixel per KNV Cube
- each Pixel is a combination of 1x 30W Hyper white LED and 16x surrounding RGB LEDs.
- approx. 50.000 lm output in total
- approx. 100.000 NIT
Dimming
- Flicker free operation due to variable PWM smooth electronical dimming to the very low end up to 16bit control of each colour and pixel
Control
- Different control modes for comfortable integration from compressed RGBW, Strobe-RGB, Multilayer and single pixel 8bit and 16bit mode for creative flexibility.
- Easy cloning options – the KNV can easily get cloned by standard RGBW or strobe fixtures.
- Direct quick access to multi-layer FX engine for maximum creativity at lowest programming time.
- TrueColor FX for defined colours while using multilayer Single pixel control with 8 bit and 16 bit for embedding video pixel mapping.
www.glp.de
Australian Distributor: TLC Global www.tlcglobal.com.au
