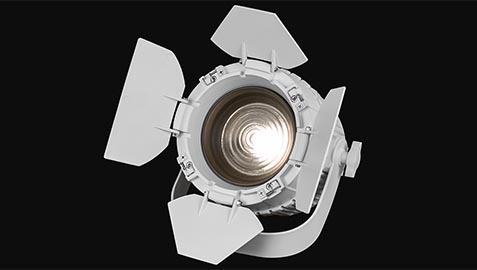

The F2X48 is now available with a white chassis! It is one of our smaller fixtures, but that doesn’t stop it from packing a punch. It is fanless, has built-in barndoors, a manual zoom range of 20-50 degrees and two individual 48W Warm White and Cool White LEDs. This design allows you to control the colour temperature making it versatile for theatre, architectural and live music applications.
Power
Power Supply: 100~240V AC, 50/60 Hz
Power Consumption: 75W
Power Connection: Neutrik® PowerCON in / out
Photometrics
Light Source: 1 x 48W cool white 5700K and 1 x 48W warm white 2700K COB LED
CRI: 95
Beam Angle: 20° – 50°
Field Angle: 50° – 67°
Output: 1420 lux @3M at 20°, 535 lux @3M at 50°
Lens: 80mm Fresnel
PWM: 1,200Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 16-bit 0 – 100%
Strobe: 1 – 25 Hz
Zoom: Manual Zoom 20° to 50°
Barn Door: Included
Gel Clip: Included
Control
Operational Modes: Manual, Master / Slave & DMX
Display: 4-button LCD control panel
DMX Protocol: DMX512
DMX Channel Mode: 1 / 2 / 5
DMX Interface: 3-pin XLR (Optional 5-pin XLR)
Housing
Housing Materials: Die- cast Aluminum Housing
Housing Finishing: White
Cooling: Fanless Cooling with Temperature Protection
Net Weight: 2.3 kg
Dimension: 202 X 139 X 193mm
