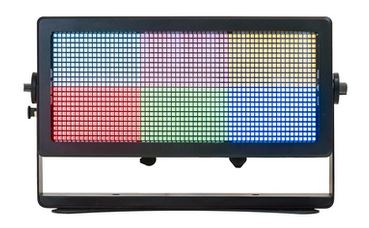

The WIP1320 is an updated version of the STROBEXORGBW. It packs a punch with 1320 0.8W RGBW LEDs that have to be seen to be believed. The high output unit is IP65 rated and features 6 segment control, on-board macros and 120 degree beam angle, making it a truly versatile fixture.
Power
- Input Voltages: 100V~240V AC,50/60Hz
- Power Consumption: 1150W
- Power Connection: Seetronic® Outdoor Powerkon Input Connection
Photometrics
- Light Source: 1320 pcs 0.8W SMD5050 RGBW LEDs
- Beam Angle: 120°
- Output: 2,200 lux @3.0 M RGBW full on
- PWM: 2,000 Hz
- LED Life: 50,000 hours
Effects
- Dimming: 0 – 100%
- Strobe: 0.5 – 25 Hz
Control
- Operational Modes: Manual, Auto Program, Master / Slave & DMX Modes
- Display: 4-button LCD Display Control Panel
- DMX Protocol: DMX512
- DMX Channel Mode: 4 / 5 / 7 / 13 / 15 / 31
- DMX Interface: Seetronic® 3 Pin Outdoor in / out DMX Interfaces
Housing
- Housing Materials: Die-cast Aluminium Housing
- Housing finish: Matte Black
- Cooling: Sensor Thermostat Controlled Fan
- Dimension: 490 x 285 x 160 mm
- Net Weight: 10.1 kg
