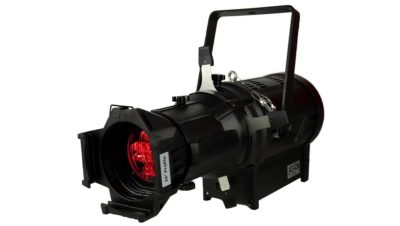

The PS200LEFC is a full-colour profile spotlight engine, featuring a 200W RGBL LED engine with four vibrant colours: Red, Green, Blue and Lime.
With smooth 16-bit dimming, aluminium housing, 3-pin DMX, Powercon in/out and a user-friendly interface, this profile spot is suitable for a wide range of applications including stage and theatre work.
Supplied separately, lens options to suit include the PSLII19 (19°), PSLII26 (26°) and PSLII36 (36°).
Photometrics
- Light Source: 200W RGBL
- Beam Angle: 19°, 26° or 36°
- Output: 200W RGBL
- Optional Lens: PSLII19, PSLII26, PSLII36
- PWM: 8,000 Hz
- LED Lifespan: 50,000 hours
Effects
- Dimming: 0~100%, 16-bit
- Strobe: 1~25 Hz
- Gobo holder size: ‘B’ 87.5 mm overall size, 35 mm image size
- Gel Frame: Included
- Iris: PSIRIS (Optional)
Power
- Power Supply: 100~240 V AC, 50/60 Hz 200 W
- Power Connection: Neutrik® PowerCON in / out
Control
- Operational Modes: DMX, static colour, manual control via menu
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 5 DMX profiles – 7/ 8 / 8H/ 9H and 13 channel mode (note there are two different modes using 8 channels).
- Control Interface: 3-pin XLR
Housing
- Housing Materials: Aluminium and ABS, matte black finish
- Cooling: Variable Speed Fan
- Net Weight: 8.6 kg
- Overall Size: 538 X 270 X 395mm
