A natural evolution of our LED dimmer product line, the CVC4 builds on the technology of our popular CVC3 and DIN-LED4PX decoders, plus a whole lot more!

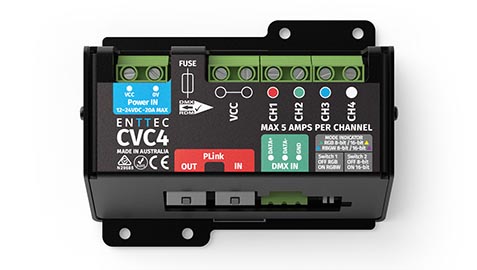

The CVC4 is capable of dimming up to 5A on each of its four channels at either a 16- or 8-bit resolution – equating to 25m of ENTTEC’s RGB 9VL4 LED strip or 17m of 9VLW RGBW.
Its ultra-smooth dimming, auto-addressing functionality and protocol conversion functions combined with simple mode selection (see diagram below) make the CVC4 one of the most comprehensive LED dimmers on the market.
Auto-addressing
The perfect way to speed up installation time as well as cut costs, this function works intuitively for installers, even if completely unfamiliar with DMX.
Simply connect your DMX line to the CVC4 and daisy chain to auto-address up to 170 x CVC4s on RGB 8-bit mode using the P-Link Output.
Alternatively, connect your CVC4s via PLink to your Pixelator/Mini to be able to daisy chain and auto-address up to 340 x CVC4s on RGB 8-bit mode. Users can also link DMX through each CVC4 and address and monitor them using RDM.
Flicker-free
The CVC4 changes the relative brightness of each channel in order to produce different colours and effects.
What’s more, its comparably high PWM rate (1KHz) means that if the LED strip it is controlling is filmed, it will not appear to flicker in recordings in the way that those controlled by LED drivers with a lower refresh rate do.
This makes the CVC4 the ideal device for television studio installations or indeed any space you want to look stunning at the receiving end of a film camera or in a social media shoot.
A breeze to install with its rugged, in-built surface-mount tabs, the CVC4’s solid-state, fanless design makes it virtually silent while operating.
Incorporating a user-serviceable fuse to reduce the number of external components and wiring required for a safe installation, the CVC4 has been engineered to bring the ultimate in installer-friendly flexibility and fast deployment when constructing a constant voltage LED strip project.
