Building on the success of the SixBar™ series of colour-changing LED battens, Elation Professional now offers the SEVEN Batten™, a new line of linear lighting effects using the latest 7-colour multi-chip LED technology for an even more flexible colour wash solution.
Housing long-life individual 25W 7-IN-1 RGBAW + Lime + UV LEDs, with the SEVEN Batten series the LED colour spectrum has never been wider. Add to that an improved optical design that produces better colour mixing and smoothness of field and the SEVEN Batten series is capable of powerful projections of uniform colour onto any surface whether lining the downstage edge or flown in a truss.

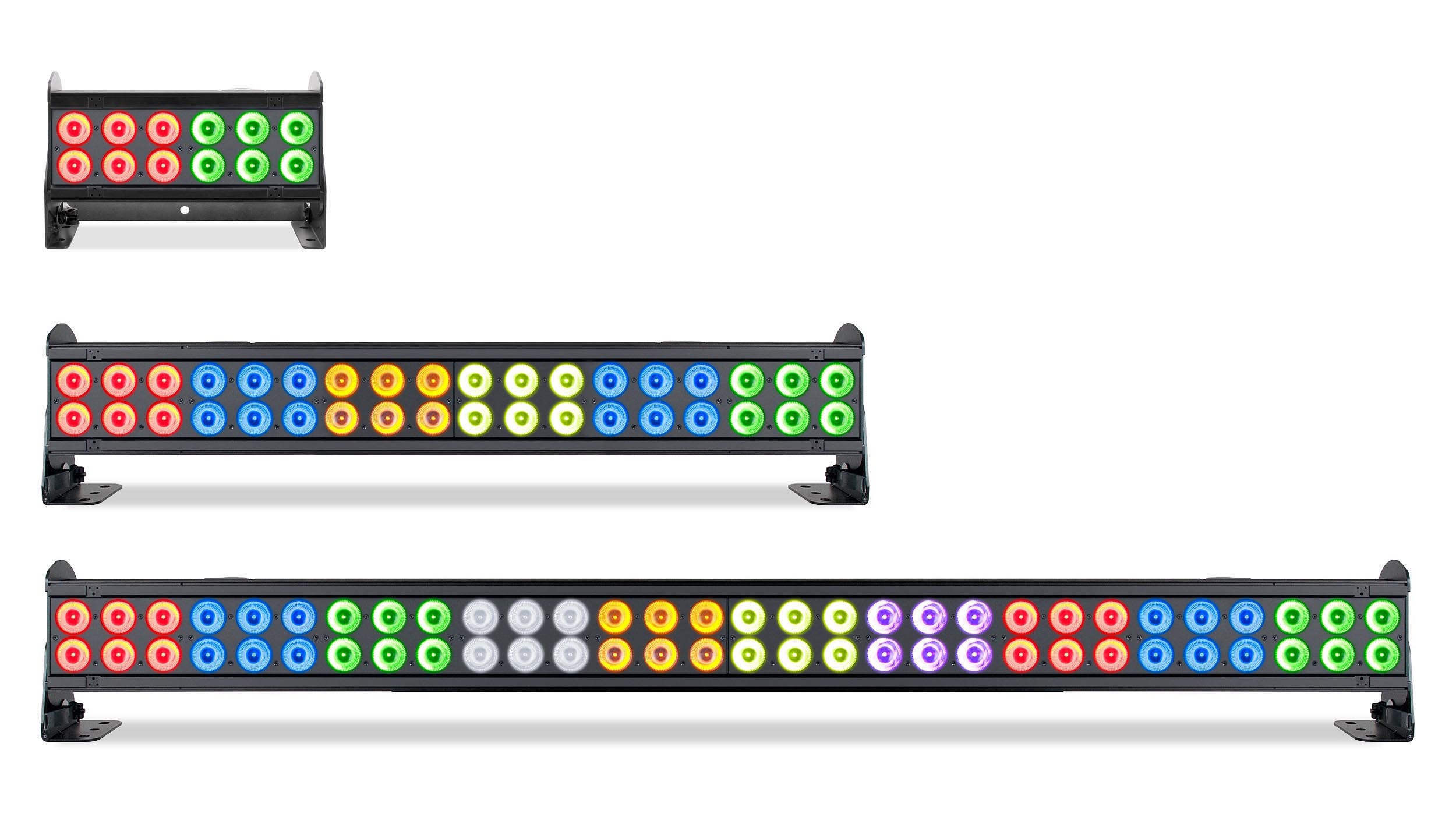

Available in 1- (0.3m), 4- (1.2m) and 6-foot (1.8m) lengths, SEVEN Batten fixtures produce nearly 80% more lumens versus comparably sized SixBar series fixtures. An updated rugged die-cast aluminum case design provides improved thermal control and heat management, ensuring stable, improved performance and extending the fixtures’ lifetime.
SEVEN Batten 14™: Housing 12 total LEDs, output is 3,989 LUX @ 9.8’ (3m) with max power consumption of 204W.
SEVEN Batten 42™: Housing 36 total LEDs, output is 9,049 LUX @ 9.8’ (3m) with max power consumption of 612W.
SEVEN Batten 72™: Housing 60 total LEDs output is 11,700 LUX @ 9.8’ (3m) with max power consumption of 1000W.
Useful for production applications or installations as a wash light, uplight, wall/cyc wash, accent lighting, direct view pixel strip and more, the SEVEN Batten’s high-power LEDs offer an expanded palette of colors, including stunning ambers, true whites and even an ultraviolet effect. The addition of the Lime LED produces a better white mixed output and improved CRI across all mixed white colour temperatures while the Amber extends the colour range and provides an effective means of colour temperature control and higher colour rendering. LED zone control allows for even further design possibilities and eye candy looks.
All fixtures in the SEVEN Batten series are fully dimmable down to 0% and a selection of variable dimming curves is provided for faster programming. A selection of strobe effect options (1-18fps) add to their versatility. All SEVEN Batten fixtures operate flicker free for use in TV and other broadcast applications.
A host of other professional features come standard with each SEVEN Batten fixture like multi-channel DMX control, 3 and 5-pin DMX In/Out, PowerCON In/Out and RJ45 etherCON in/out connections. All SEVEN Batten fixtures are ArtNet™, KlingNet™ and RDM (Remote Device Management) protocol capable and come with multiple-unit power linking. A 4-button control panel with LCD menu display with easy-to-read fixture menus and messages makes for easy navigation through DMX and manual settings. An integrated rigging bracket allows for quick hanging and a multi-voltage universal auto-switching power supply covers worldwide voltages and frequencies.
www.elationlighting.com
Australian Distributor: Lexair www.lexair.com.au
