Building on its Radius line of loudspeakers, EAW’s NTX Series aims to deliver a high-performance solution while cutting down long setup times. NTX Series couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms, production companies, and system integrators. The NTX articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. Resolution 2™ software provides system optimization from anywhere in the venue.

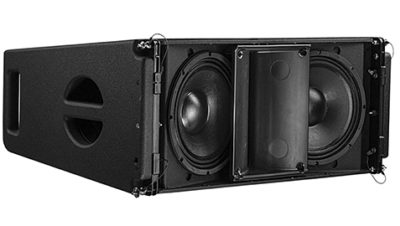

The series’ flagship is the NTX210L, designed to support medium to large outdoor festivals, corporate events, houses of worship, performing arts centres, and theatres. Weighing in at 64 pounds, this powered two-way line array system pairs two 10” woofers with a 1.4” exit HF compression driver on an Isophasic Wave Guide, providing smooth 55 Hz –18k Hz coverage with 90° x 12° dispersion. Modified Class-D amplifiers (1,200 + 400 watts), onboard DSP, integrated 3-point rigging and both analog and Dante inputs complete the package.
Also standard is EAW’s Focusing™, which employs advanced digital signal processing to perfect the impulse response of a loudspeaker in the time domain. By eliminating horn “honk” and splashiness, the result is a speaker that sounds like a studio monitor instead of a “P.A.” speaker.
Patented Optilogic technology allows the NTX speakers to communicate with the loudspeakers around it to further maximize array performance. Array self-detection via onboard infrared sensors and accelerometers for near-instant optimization cuts down on setup and tuning time with comprehensive software that delivers system prediction, control and monitoring from any location in the venue.
www.eaw.com
Australian Distributor: PAVT www.pavt.com.au
