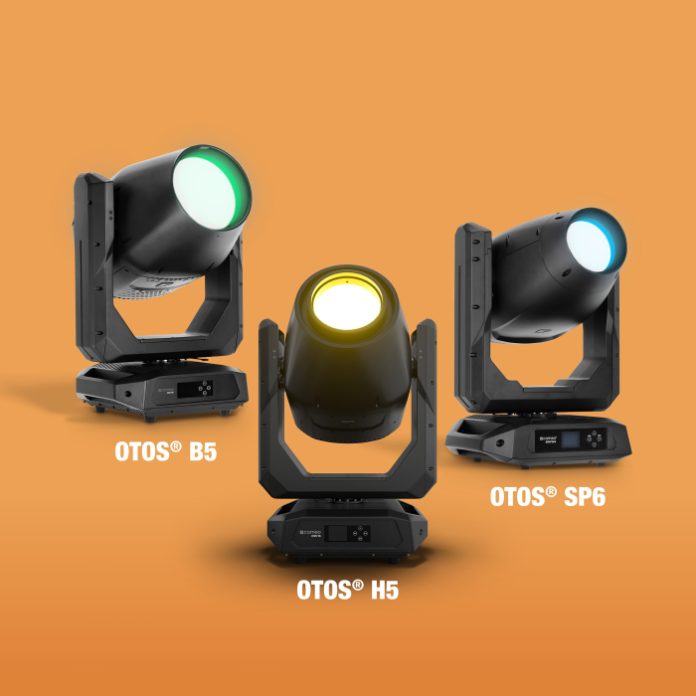

Cameo by Adam Hall Group is expanding its portfolio with the release of OTOS SP6 (Spot Profile) and OTOS B5 (Beam) models. These IP65 moving heads are aimed at lighting designers and rental companies looking for tools for outdoor use.
With the claim of the OTOS Series, Cameo sets the direction: if you don’t want to do without powerful beams, spots and washes even in heavy wind and weather, you need reliable and proven partners at your side. Whether it’s hybrid all-rounder or specialist – the IP65 moving heads of the OTOS Series impress lighting professionals with their output, robustness and flexibility, as well as low weight.
OTOS SP6 is an IP65 spot profile moving head with a 600W LED light source and an illuminance of 75,800 lx at a beam angle of 7°. The optical system – with a 130 mm front lens – offers a wide zoom range, from 7° to 50°, and ensures results without visible hotspots. With its IP65-rated housing, OTOS SP6 is an extremely versatile tool for outdoor use that can be used to reliably achieve all lighting ideas, even under adverse conditions.
OTOS SP6 boasts two gobo wheels, a five-facet prism and an integrated four-fold iris slider system with angulation and +/- 45° rotation are available. Two frost filters (light and heavy) and an infinitely variable iris diaphragm round off the wide range of possibilities. The OTOS SP6 works with CMY colour mixing and includes an additional colour wheel with six dichroic filters + open for particularly saturated colours. The linear CTO correction allows for infinitely variable adjustment of the colour temperature in the range from 2,600K to 7,000K. Thanks to the adjustable PWM frequency (650 Hz-25 kHz), the OTOS SP6 is also suitable for flicker-free use with film and TV cameras.
Control is flexible via DMX, RDM, Art-Net, sACN, W-DMX and CRMX. When it comes to handling before, during and after production, OTOS SP6 scores with its intelligently placed handles and an exceptionally low weight (34kg) – as with all moving heads in the OTOS Series – which makes the OTOS SP6 the lightest representative in its performance class.
OTOS B5 is an IP65 beam moving head based on a 480W discharge lamp. It delivers an illuminance of 511,000 LX @ 15m. With its high-quality optical system – with 205mm front lens – the OTOS B5 produces 1° beams that prevail even in dense lighting designs and remain visible even from a greater distance.
Thanks to the IP65-rated housing, OTOS B5 is particularly convincing under adverse conditions – whether it’s in continuous rain or in dusty environments. At the same time, the 480W custom discharge lamp of the beam moving head ensures reliability and profitability in long-term use. The service life of the lamp is 3,000 hours and has been tested in continuous use under live conditions.
The effects section of the OTOS B5 includes a static gobo wheel with 19 gobos + open, as well as three rotating and indexable prisms on two levels to create a variety of mid-air effects and add depth to lighting designs. In terms of colour, users can also draw from the full range of shades, thanks to the integrated CMY colour mixing and the additional colour wheel with 14 dichroic filters for particularly saturated colours.
OTOS B5 is identical in construction to the OTOS H5 except for the front lens. Thanks to the identical dimensions, both models can be stored and transported in the same flight case. With a weight of only 33kg, OTOS B5 is also one of the lightest representatives in its performance class.
www.cameolight.com
Australian Distributor: Ave Corp www.avecorp.com.au
