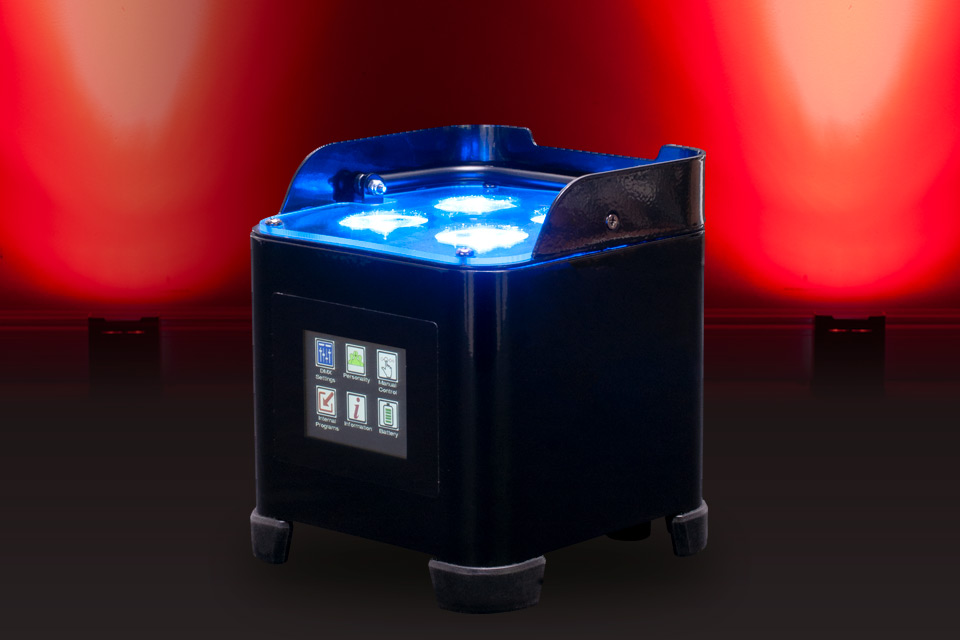

ADJ is pleased to announce the availability of its most compact wireless LED uplighter to date, the new Element ST HEX. Building on the success of ADJ’s popular Element Hex, the new model features powerful output, extremely compact design as well as a full-colour touch screen display for extremely easy setup and DMX addressing.
Featuring four 6-Watt HEX (Red, Green, Blue, Amber, White + UV) LEDs the fixture offers smooth colour mixing with an almost limitless palette. The inclusion of both amber and (cool) white LED elements means that it can be used to create white light with a wide variety of colour temperatures. Meanwhile, the UV LED element not only allows for the creation of the classic ‘blacklight’ effect where white and fluorescent materials glow vividly, but it can also be combined with the other primary colours to create hues such as hot pink, electric purple and lime green that aren’t possible using tri/quad-colour uplighters.
Although the fixture allows for full-colour mixing, through altering the intensity of all six of the primary LED colour elements, it also comes pre-programmed with 63 built-in colour macros. These allow for easy static colour washing to be setup without the need for any external control and also help to speed up DMX programming. Pre-programmed colour chase patterns are also included, which can either be set to run at a user-selected constant speed or triggered by a musical beat detected by an internal microphone. In addition, the unit offers variable speed strobing (0.1Hz to 11Hz) and pulse effects, as well as 0-100% master dimming with a choice of five different dimming curves.
Combined, the LEDs generate output in excess of 412 LUX @ 3M (9.8 ft.) and have a high average life expectancy of 50,000 hours, which means that the fixture can be expected to provide years of continual service without the need for the lamp replacements that were regularly required by pre-LED era fixtures. Meanwhile, its 20-degree beam angle makes it ideal for creating vibrant swathes of coloured light when positioned beside walls or décor features that are to be highlighted.
An internal fixed lithium battery with a capacity of 6.6AH (Amp Hours) is capable of generating 73.26WH (Watt Hours) of power. This is sufficient to drive the LEDs for up to 15 hours using a single LED color on full brightness, which can be increased to as much as 25 hours using the lower intensity ‘power saver’ modes. Once depleted, the battery requires just 5 hours of charge time to return it to full capacity.
The unit also features an in-built ADJ WiFLY EXR (extended range) receiver, which means that it can be controlled via DMX wirelessly using a compatible control system, such as ADJ’s WiFLY EXR Transceiver. In addition, it also has an infrared sensor for use with ADJ’s UC-IR remote, which is supplied with the fixture. This allows for simple control over basic features such as blackout and color macro selection.
The unit has extremely compact measurements of 5.12” x 5.12” x 5.6” / 130 x 130 x 143mm (LxWxH) and, despite its low weight of 4 lbs. / 1.8kg., it has an extremely tough metal construction. Cleverly designed with a built-in snoot, variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, décor specialists and mobile entertainers.
A large full-color, touch-sensitive display on the side of the fixture provides an extremely intuitive menu-driven interface that allows for easy DMX addressing, selection of the in-built colour macros and customization of the various operating options. The screen also provides a readout of the current battery life status and can be set to display menu options and information in either English or Spanish.
The fixture is charged using the supplied 12DC power adapter, which connects via a socket on the base of the unit. In addition, there is also an on/off rocker switch as well as a USB service port that allows easy installation of future firmware upgrades.
www.adj.com
Australian Distributor: ULA Group www.ulagroup.com
