ADJ is expanding both its popular COB Cannon Series of LED wash fixtures as well as its new range of lighting products incorporating lime LED chips with the introduction of the COB Cannon LP200ST. Featuring a powerful light engine, smooth colour mixing and wide beam angle, this punchy and flexible professional wash lighting fixture can be used for a wide variety of applications.
The COB Cannon LP200ST harnesses the power of an efficient 200W COB (Chip On Board) LED light source, which generates a potent and even output with no colour shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colours as well as white light with a variable colour temperature of between 2,300K and 9,900K. The inclusion of the lime LED chip helps certain colours to appear more vivid and also boosts the CRI to in excess of 90. The LED engine has an approximate lifespan of 50,000 operational hours, which essentially removes the inconvenience and expense of lamp replacement.

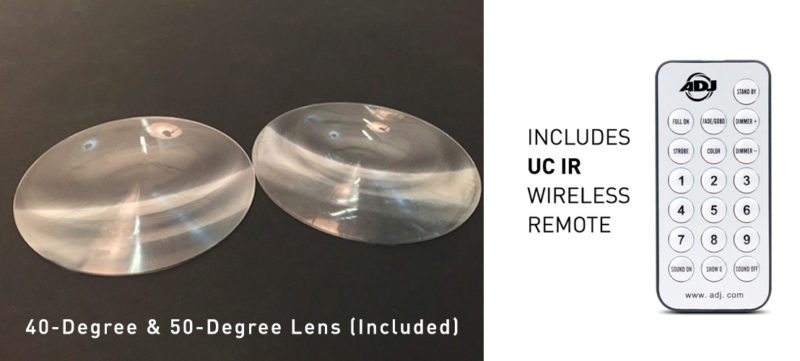

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant coloured light, the COB Cannon LP200ST is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. Barn doors for directing the light output are also available as an optional accessory [BAR001 – COB Cannon Wash Barn Doors].
A variety of operational modes make this fixture suitable for use in all kinds of permanent installation and temporary event applications. Colours can be quickly and easily selected directly from the OLED digital display located on the rear panel of the fixture, which features an easy-to-use menu interface navigated using four push buttons. Multiple fixtures can then be linked together using DMX cables for a simple Primary/Secondary setup where subsequent (Secondary) fixtures will mimic the output of the first (Primary) unit. An ADJ UC IR remote control is also supplied with the fixture, which can be used to easily select colours from a distance.
Of course, the COB Cannon LP200ST can also be controlled via DMX and it offers a choice of 10 different DMX modes (5, 8, 9, 10A, 10B, 11, 12, 14, 17, and 21-channel), which can be selected based on the level of control required and the number of channels available in the particular situation in which the fixture is used. As well as full colour mixing control over the unit’s five primary LED colours, linear white light colour temperature control is also facilitated via a single channel and DMX can also be used to remotely select any of the fixture’s 64 built-in colour macros.
The fixture offers a wide variety of customizable options, allowing it to be tailored to a user’s personal preferences or the specific requirements of a particular application. These include six selectable dimming modes (Standard, Stage, TV, Architectural & Theatre), four selectable Dimming Curves (Square, Linear, Inverse Square, & Square Curve) and adjustable Dimming Speed (between 0.1 and 10 seconds). In addition, the LED Refresh Rate can also be adjusted using 14 presets (ranging from 900Hz to 25,000Hz) to eliminate flicker for broadcast or video capture applications. All these customizable parameters can be altered via DMX as well as directly from the OLED menu interface (with the exception of Dimming Speed, which can only be adjusted using DMX).

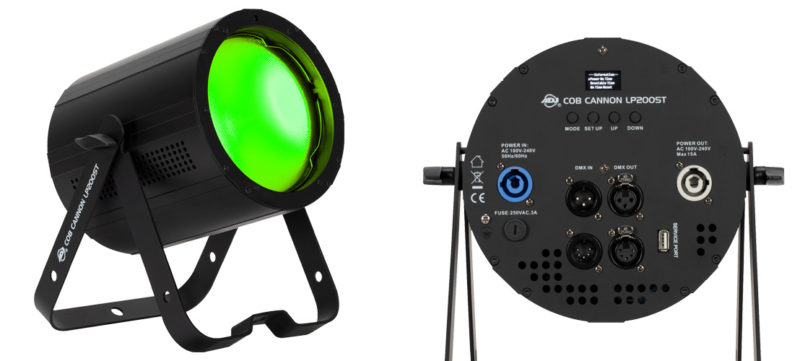

For easy integration into an existing control system, both 3-pin and 5-pin DMX input and output sockets are included on the fixture’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. The unit is also fitted with a USB Service Port, which will facilitate quick and easy loading of any future firmware updates.
Weighing in at 4.2 kg, the COB Cannon LP200ST is easy to lift, carry, and rig. With compact dimensions of 330 x 256 x 190mm it is also convenient to store and transport, and is ideal for installations where headroom or rig space is limited. It is supplied with a flexible scissor yoke, which locks securely into place using a pair of large plastic thumb-tightening screws, that can either be used as a hanging bracket or floor stand.
“ADJ’s COB Cannon Wash fixtures utilizing COB LED engines have proved extremely popular with both integrators and equipment rental / production companies for a number of years,” explains ADJ USA’s National Sales Manager, Alfred Gonzales. “Now, with the new COB Cannon LP200ST, we’ve boosted the wattage of the LED engine and added a lime chip. This gives the fixture a higher CRI output, plus it allows lighting designers to be more flexible with the option of a full gamut of colours as well as tunable white colour temperatures for properly lighting people of all skin tones. These versatile fixtures are ideal for a wide variety of temporary event and permanent installation applications. Thanks to their wide native beam angle, they are perfect for use as house lights, while the supplied clip-on lenses mean they are equally suited to washing stages, dancefloors and décor.”
www.adj.com
Australian Distributor: ULA Group www.ulagroup.com
