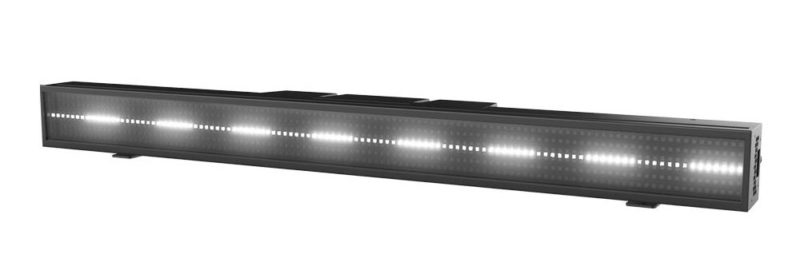

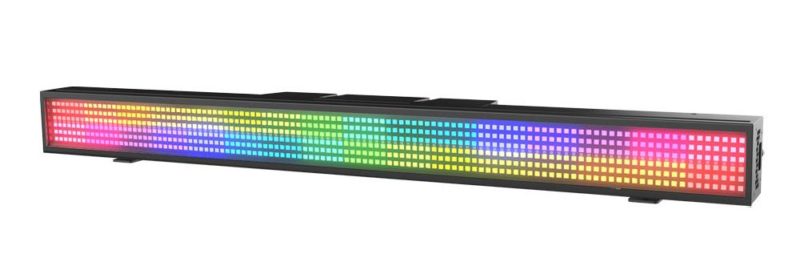

Pixel Bar Revolution! A mapping strip light is always a vivid element of the stage layout design. Beyond the expected, a punch intensive, a compact flaring surface, and an all-weather enclosing will meet the varied stage arts application.
Most noteworthy is the first try in our industry, a bold attempt that we gained from the Smart Glass Technology(PATENTED) and developed on our new PIXEL LINE IP. Simply switch a channel and turn the front glass into frosted/transparent output, leaving out the traditional slot-in filter, a much more user-friendly and easier capability to create a visual interest washing and dynamic strobing to those linear elements on stage.
Equipped with 672 x 0.5W RGB LEDs and a masterly 112 x 3W Cold White strobe tube hiding in between the majority RGB layout, a perfect way to avoid “empty black holes” during the colour chasing, and a new eye-catching strobing layer to express its art. The RGB LEDs are divided into 32 sections while the Color White LEDs are divided into 16 sections, the creative programming from LDs can be big fun!
The friendly installation structure includes a pair of fully-new designed foldable clamps have been integrated on the back, available in standing alone, horizontal adjustment or a slight angle changes for hooking the cross-cover area. A quick-positioning twist lock on two sides ensures the matrix line up. And we have made a breakthrough in this IP rating housing (PATENTED)in such a compact 8kgs standard one-meter long bar.
All-weather application, numerous innovative achievements, and a new definition of effect bar.
Features
- Light Sources:
- 672pcs 0.5W RGB LED: can be divided into 32 controllable sections
- 112pcs 3W CW LED: can be divided into 16 controllable sections
- Beam Angle:
- RGB Beam Angle?101°
- CW Beam Angle?108°
- Field Angle:
- RGB Field Angle: 149°
- CW Field Angle: 152°
- Outstanding color mixing effect
- High output strobe effect
- Multiple units can be split-jointed with tool-free junction buckle design
- Applying the Smart Glass as frontal glass, providing changeable frosted/transparent effect
- Four optional smooth dimming curves to meet with different effect applications
www.en.acme.com.cn/
Australian Distributor: ULA Group www.ulagroup.com
