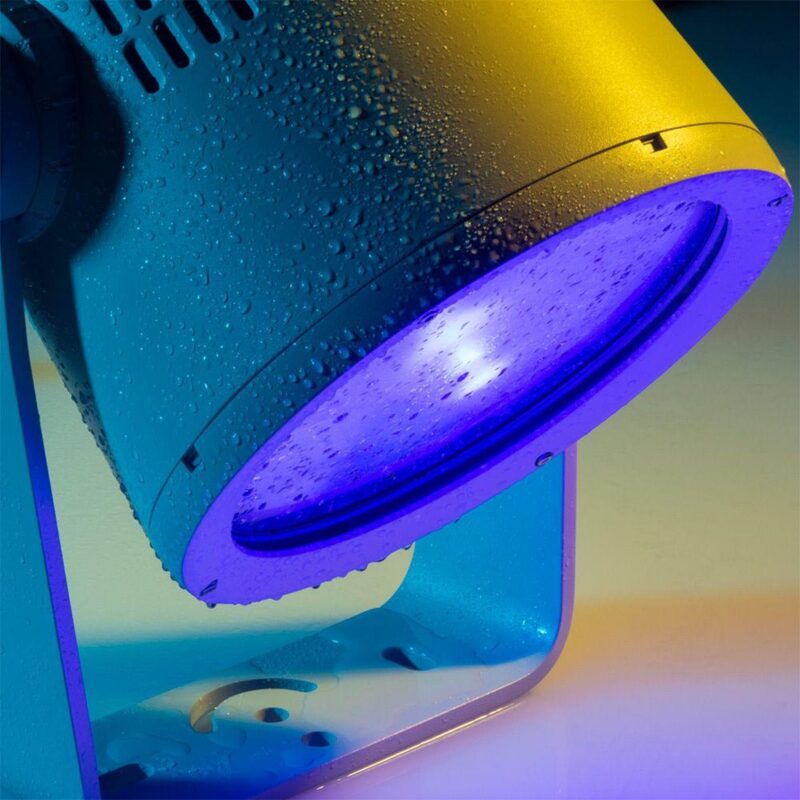

Acclaim Lighting introduces Unity to bring a high level of flexibility, performance, and refinement to exterior illumination with its advanced Spectrum Five light engine and large aperture Fresnel lens.
The advanced Spectrum Five light engine offers saturated RGBAL (Red, Green, Blue, Amber, Lime) colour mixing. Additionally, Unity delivers a specially calibrated control channel that can instantly match any temperature of white, from 2,500K to 8,000K, for ultimate colour and design control, the company says.
“In addition to its unique colour and unified beam configuration, the additional core technologies make Unity a standout,” notes Acclaim Lighting general manager Michael Giardina. “The ColorSync calibration technology, combined with our Outdoor Link System cabling options and quick-ship modular design platform, sets it apart from other floodlight fixtures.”
Unity comes with a standard narrow 10° beam angle with optional 30° x 30°, 50° x 50°, 70° x 70°, 100° x 100°, 10° x 60°, 30° x 60° for wider applications. The fixture produces up to 11,639 lumens while consuming 330W.
Unity features an internal 100-277VAC, 50/60Hz power supply with external control using DMX-512A supported through a cable connection or the built-in Aria wireless receiver. Its clear daylight-readable OLED touch-screen user display provides access to a comprehensive configuration menu system, including 0 – 100% dimming capabilities and manual colour operation. For wired installations, RDM (Remote Device Management) can be used to configure numerous key settings without needing to visit each fixture.
IP66-rated for wet locations, Unity has a die-cast aluminium housing, a glass top lens, and an optional marine coating, making it suitable for even the harshest outdoor environments. It is available in grey, black, white, and custom finishes. Unity will perform in temperatures between -10°F to 125°F (-10°C to 51°C) with a performance life of 100,000 hours. The fixture is also ANSI C136.31, 3G-rated for high vibration and bridge applications. Unity comes with a five-year, limited warranty.
www.acclaimlighting.com
Australian Distributor: ULA Group www.ulagroup.com
