Equipment News

Acclaim Lighting Outdoor Link System

Acclaim Lighting introduced its new IP67-rated Outdoor Link System for quickly and easily linking Dyna Drum and Dyna Accent series fixtures, while eliminating excess hardware for lighting projects.

The system allows the linking of up to 32 fixtures from a single power source without the need for a connection point at every unit.

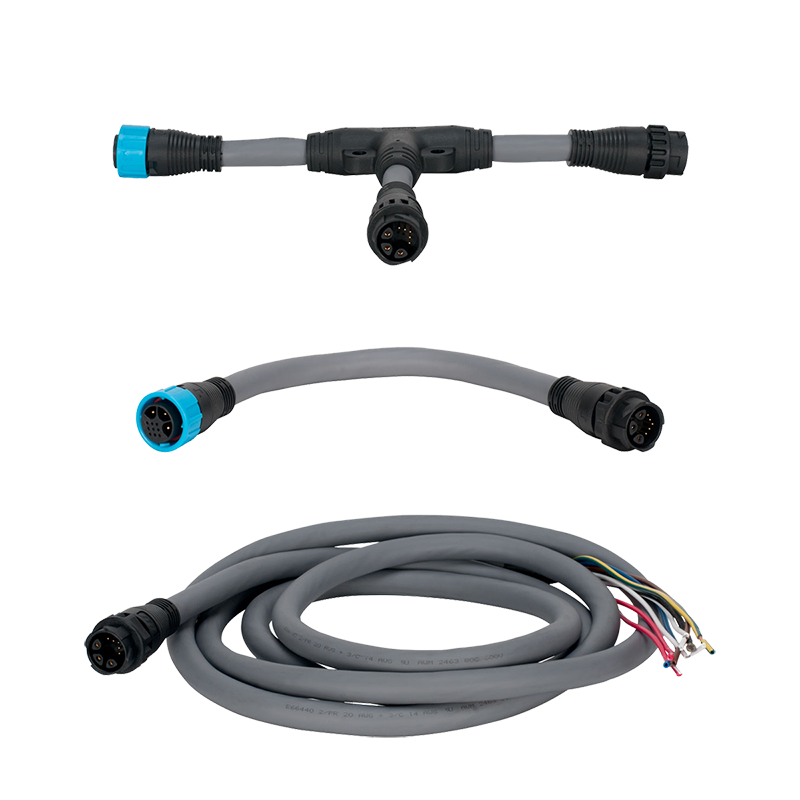

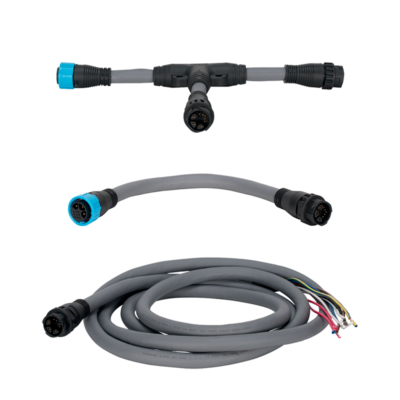

The new Outdoor Link System includes “T” junction (OLS T), link cable (OLS L), feed cable (OLS F) and end cap (OLS EC) connection options. Available with 3 x 14AWG AC conductors and 4 x 20AWG + shield 120Ohm DMX conductors, the Outdoor Link System operates from 120VAC (1.8 kW) to 277VAC (4.155 kW) with maximum input voltage of 305VAC and maximum total line amperage at 15A.

IP67-rated for wet locations and UL94-V0 rated for flame resistance, the Outdoor Link System performs in temperatures between -40 to 176 °F (-40 °C to 80 °C). The system comes with a five-year limited warranty.

www.acclaimlighting.com
Australian Distributor: ULA Group www.ulagroup.com
